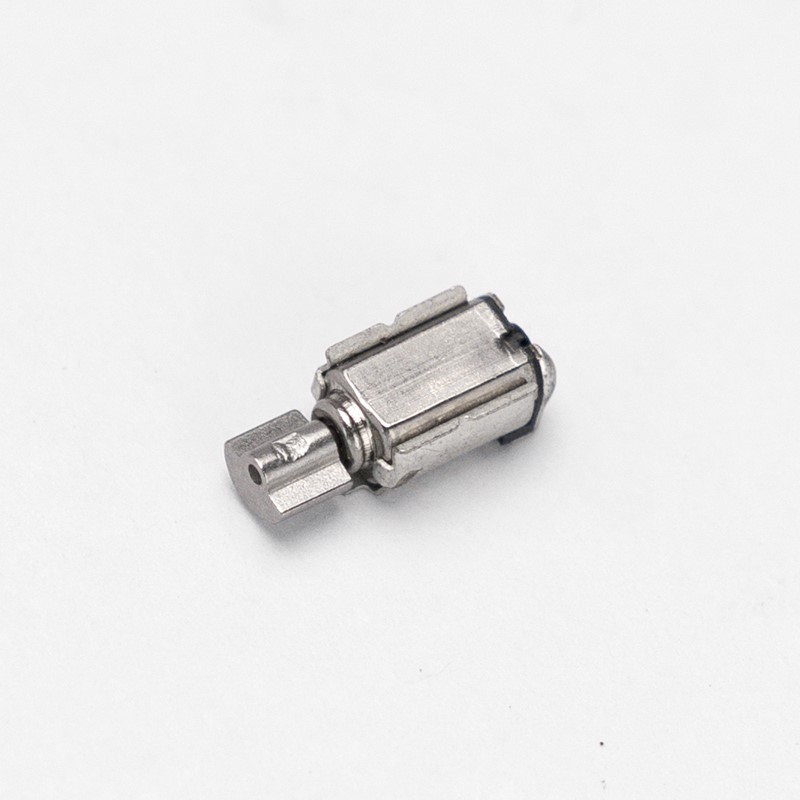

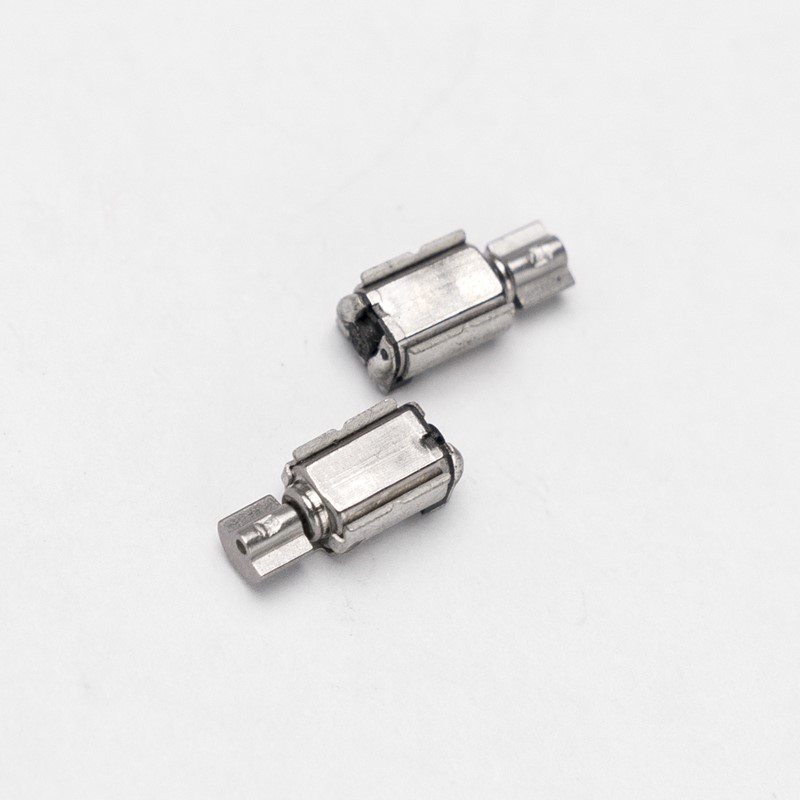

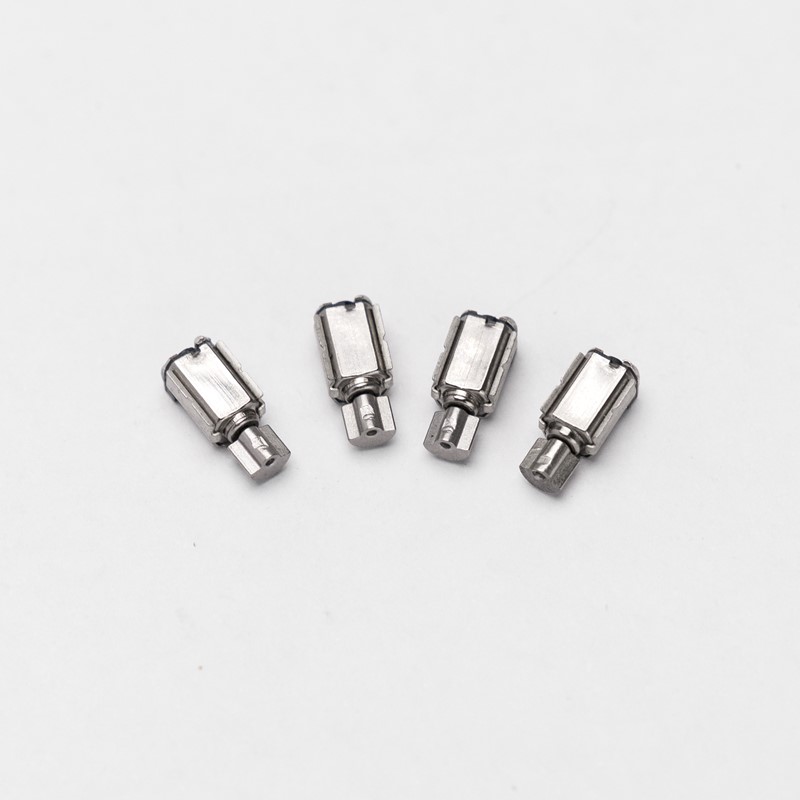

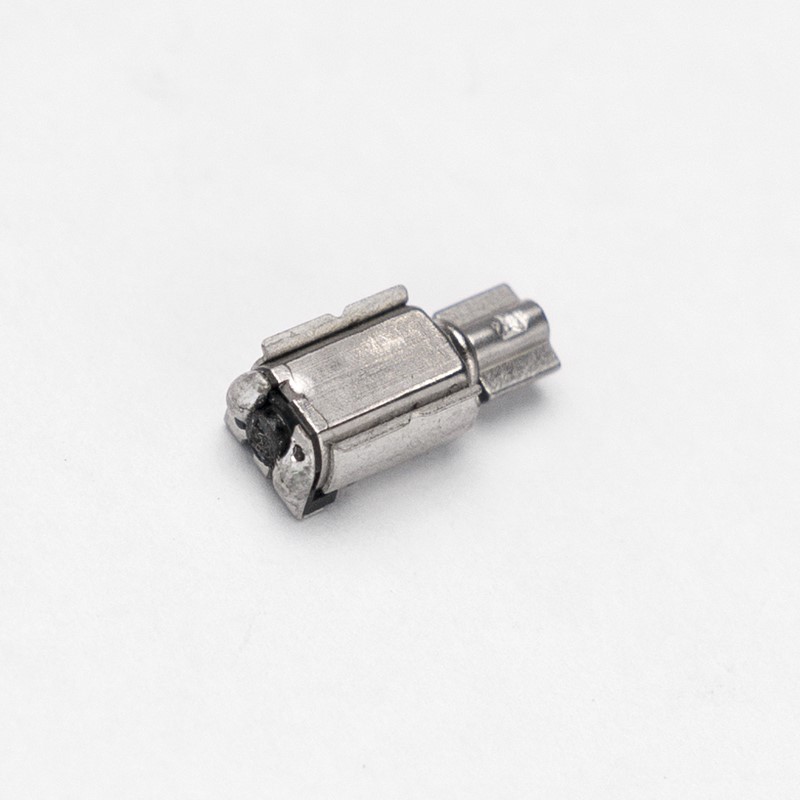

3610 SMD smallest dc vibration motor for mobile phone and smart watch

2024-07-24 11:40:51

Model: FM3610

Type: Hollow Cup Motor

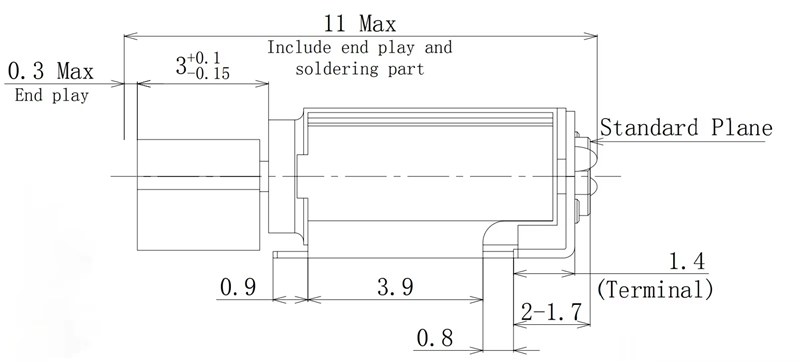

Size: φ10.0mm * L15.0mm

Performance parameter:  3V   12000RPM

Overview

Product Introduction




Mini hollow cup motor is a type of small electric motor that features a hollow cup design. It is known for its compact size, high efficiency, and low noise operation. This type of motor is commonly used in various applications such as robotics, drones, camera gimbals, and medical devices.

The mini hollow cup motor is ideal for situations where space is limited and weight is a concern. Its small size allows for easy integration into small devices, while its high efficiency ensures optimal performance. Additionally, the low noise operation makes it suitable for applications where noise levels need to be kept to a minimum.

Specification



    The 3610 SMD smallest DC vibration motor is an advanced solution designed specifically for mobile phones and smartwatches. Operating at a voltage of 3V and reaching an impressive speed of 12,000 RPM, this compact motor delivers powerful yet precise vibrations, enhancing notifications and alerts in modern devices.
    This motor is engineered for reliability and performance, ensuring that users receive tactile feedback for calls, messages, and app notifications, thus enriching the overall user experience. Whether you’re designing the next generation of smartphones or smartwatches, the 3610 SMD smallest DC vibration motor is the perfect choice for delivering high-quality vibration feedback in a compact package.


Model

Rated

voltage

At no-load

At maximum efficiency

At stall

Speed

Current

Speed

Current

Torque

Power

Eff.

Stall torque

V DC

rpm

mA

rpm

mA

g.cm

W

%

g.cm

FM0716-071

3.7

14500

10

11800

43

0.7

0.09

36.4

3.9

FM0716-049

9.0

23000

13

19500

73

2.2

0.43

55.8

14.3

FM0716-030

12.0

17500

30

15000

30

1.6

0.25

66.0

11.6

FM0716-082

3.0

33500

80

29000

516

3.5

1.03

66.5

25.8























Operating temperature range:﹣20℃~+60℃(-4℉~140℉)

Axial play:0.05~0.30mm

Axial load:10N

Radial load:0.7N

No. of pole pairs:1

Bearings:2 sleeve bearings

Commutator:Precious metal 3 segments

Protection class:IP30


Application




1.Electric toys: mini dc motor can be used to drive small electric toys, such as remote control cars, remote control planes and so on.

2. Household appliances: mini dc motor can be used in household appliances, such as electric toothbrush, electric shaver, etc.

3. Mechanical equipment: mini dc motor can be used to drive some small mechanical equipment, such as small power tools, small robots and so on.

4. Car models: mini dc motor can be used to drive small parts in car models, such as wheels, lights and so on.

5. Medical equipment: mini dc motor can be used for some small medical equipment, such as electric massager, electric suction, etc..

6. Smart home: mini dc motor can be used in smart home products, such as smart curtains, smart door locks and so on.

7. Electronic equipment: mini dc motor can be used to drive some small electronic equipment, such as small fan, small like head and so on.

8. Industrial equipment: mini dc motor can be used in some small industrial equipment, such as small conveyor belt, small mixer.




Details








Customization


    We understand the technical and manufacturing challenges motors present and enjoy providing solutions. Through our design we reduce costs and engineering risk, leading to innovative solutions delivered on time and to spec.



Quality Control



    Before leaving the factory, the motor needs to go through a series of tests, including: appearance test, size test, performance test, mechanical test, salt spray test, temperature storage test, drop test, noise test.




Qualification


Yichang Boyuan Electronics Co., Ltd. has been specialising in the production and research and development of DC micromotors since 2004. The company owns more than ten invention patents, a core team of 20 people, more than 200 employees, a standardised dust-proof workshop of 4,000 square feet, an independent motor laboratory and automated production equipment, the degree of automation in the production of micro-motor components reaches more than 56%, and the annual output of all kinds of motors is 30 million units.

Every year, the company develops more than 500 kinds of new motor samples, among which the waterproof electric toothbrush motor, radial motion acoustic motor and massage shoe motor have entered the mass production stage. At the same time, the company's automotive door locks, wiper pumps, seat automatic adjustment iron core motors through the manufacturer's audit to become a first-class automotive suppliers.

The company follows the principle of scientific and technological innovation, fine management, strict control of product quality. In 2022, the company successfully passed the IATF16949 automotive quality system certification.
