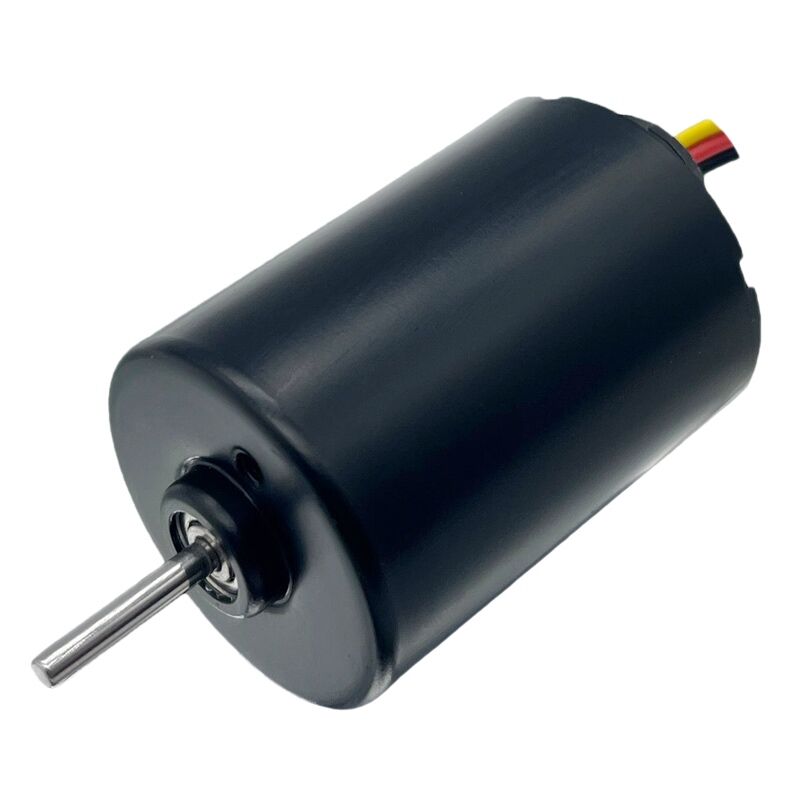

Long life 3650 DC brushless motor with built-in drive suitable for robots and office equipment, medical equipment
Model: FM3650
Type: BLDC Motor

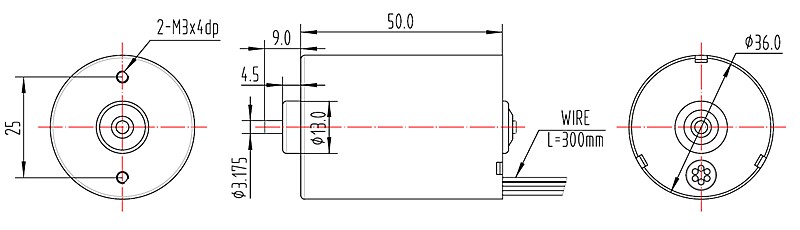

Size: φ36mm * L50mm
Performance parameter: 3V~24V 5000RPM~20000RPM
Overview
Product Introduction
Mini hollow cup motor is a type of small electric motor that features a hollow cup design. It is known for its compact size, high efficiency, and low noise operation. This type of motor is commonly used in various applications such as robotics, drones, camera gimbals, and medical devices.
The mini hollow cup motor is ideal for situations where space is limited and weight is a concern. Its small size allows for easy integration into small devices, while its high efficiency ensures optimal performance. Additionally, the low noise operation makes it suitable for applications where noise levels need to be kept to a minimum.
Specification
Introduce our 3650 DC brushless motor, which has an ultra long lifespan and built-in drive. Specially designed for a wide range of applications such as robots, smart homes, office equipment, medical devices, power tools, and household appliances. This advanced motor operates within the voltage range of DC 8 to 24V and has PWM speed control function, enabling precise performance management.
Our motor offers both forward and reverse controllability, making it versatile for various applications. Additionally, it is equipped with a FG (Frequency Generator) signal for real-time speed feedback, ensuring optimal operation in dynamic environments. The built-in BRK (brake) signal safety and control, allowing for quick and efficient stopping.
With its ultra-long lifespan, this DC brushless motor is engineered for reliability and durability, minimizing maintenance needs and maximizing productivity. Whether you are developing cutting-edge robots, modern smart home devices, or high-performance medical equipment, our motor delivers the efficiency and performance you need. Upgrade your technology with our state-of-the-art DC brushless motor today!
|
Model |
Rated voltage |
At no-load |
At maximum efficiency |
||||
|
Speed |
Current |
Speed |
Current |
Torque |
Power |
||
|
V DC |
rpm |
mA |
rpm |
mA |
g.cm |
W |
|
|
FM3650-1265 |
12.0 |
6500 |
300 |
5452 |
1500 |
261 |
14.6 |
|
FM3650-2440 |
24.0 |
4000 |
100 |
3400 | 430 |
202.5 |
7.06 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PIN NO. SIGNAL Functions
P1/red GND Ground
P2/black Vcc Voltage range:8.5V～26V
P3/yellow FG 9 pulses/cycle, low level: 0.6V MAX, high level: Vcc×0.177
P4/white PWM Negative duty cycle, motor start at low level, 10kHz to 30kHz recommended.
P5/blue CCW/CW At low level (0.6V MAX), the motor switches the direction of rotation.
Application
1.Electric toys: mini dc motor can be used to drive small electric toys, such as remote control cars, remote control planes and so on.
2. Household appliances: mini dc motor can be used in household appliances, such as electric toothbrush, electric shaver, etc.
3. Mechanical equipment: mini dc motor can be used to drive some small mechanical equipment, such as small power tools, small robots and so on.
4. Car models: mini dc motor can be used to drive small parts in car models, such as wheels, lights and so on.
5. Medical equipment: mini dc motor can be used for some small medical equipment, such as electric massager, electric suction, etc..
6. Smart home: mini dc motor can be used in smart home products, such as smart curtains, smart door locks and so on.
7. Electronic equipment: mini dc motor can be used to drive some small electronic equipment, such as small fan, small like head and so on.
8. Industrial equipment: mini dc motor can be used in some small industrial equipment, such as small conveyor belt, small mixer.
