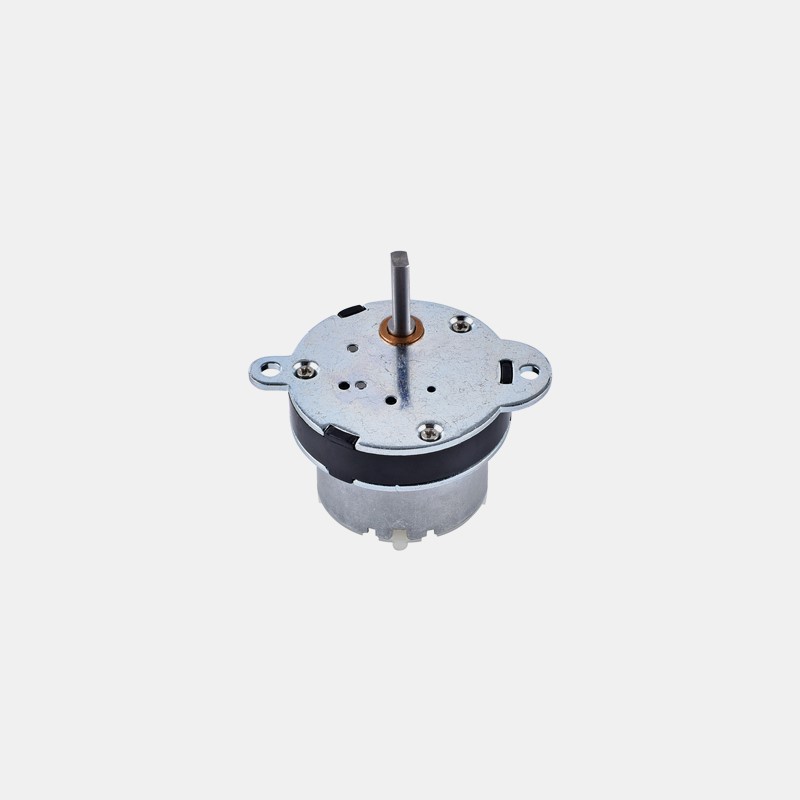

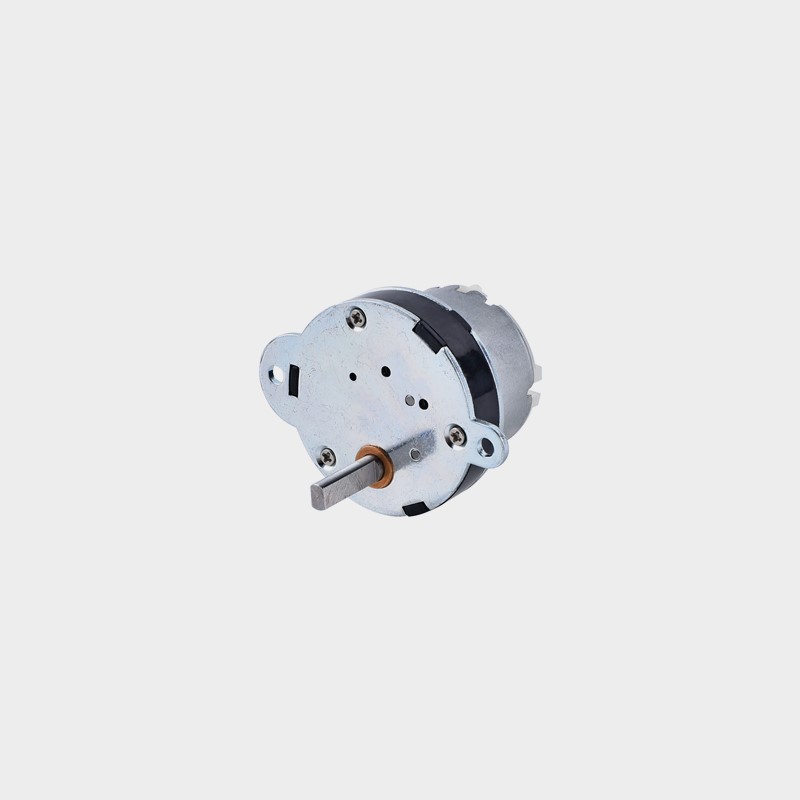

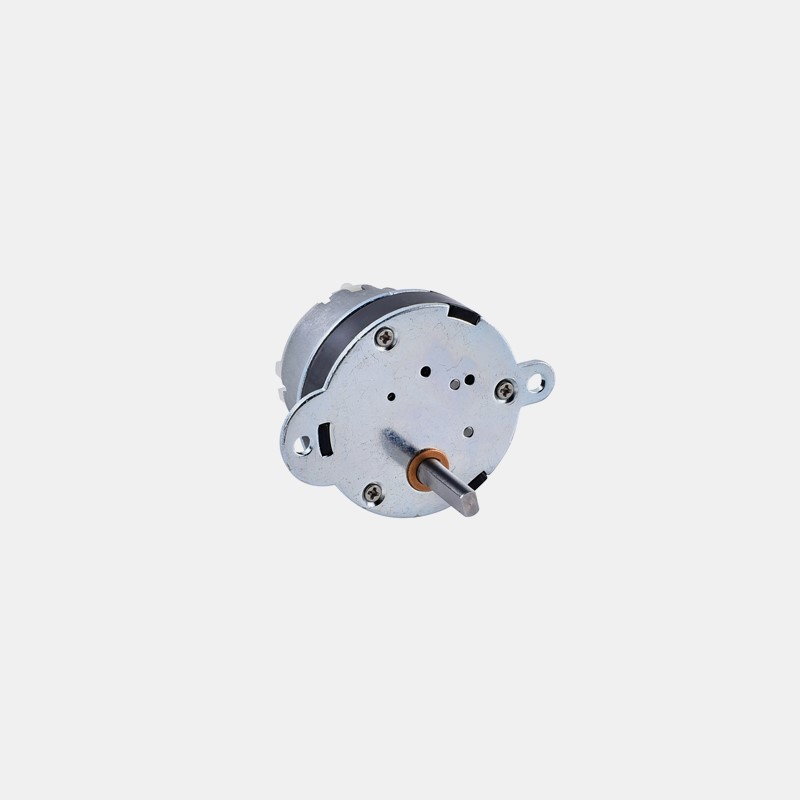

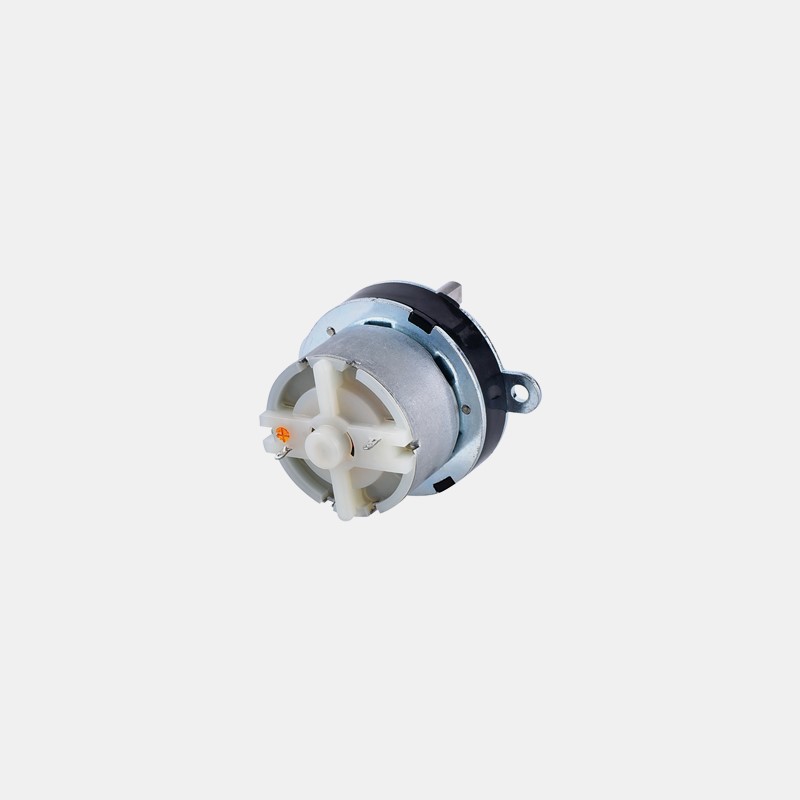

40GB-500 miniature DC deceleration motor for intelligent lighting fixtures and floor sweepers
Model: FM-40GB-500
Type: DC Gear Motor
Performance parameter: 3V to 12V 11RPM to 1500RPM
Overview
Product Introduction
Mini hollow cup motor is a type of small electric motor that features a hollow cup design. It is known for its compact size, high efficiency, and low noise operation. This type of motor is commonly used in various applications such as robotics, drones, camera gimbals, and medical devices.
The mini hollow cup motor is ideal for situations where space is limited and weight is a concern. Its small size allows for easy integration into small devices, while its high efficiency ensures optimal performance. Additionally, the low noise operation makes it suitable for applications where noise levels need to be kept to a minimum.

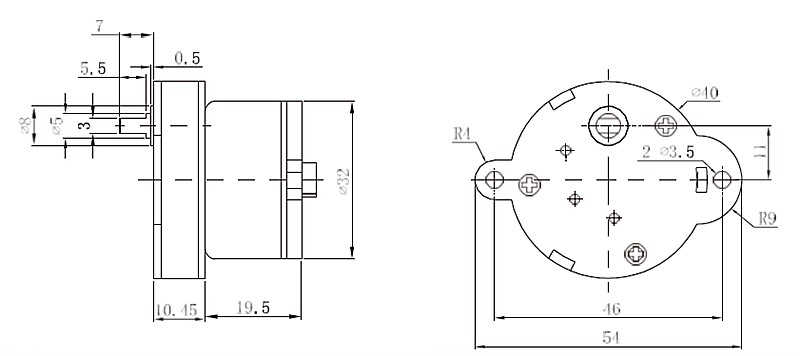

Specification
DC gear motors are essential components in a variety of applications, known for their high torque, low speed, and precision. These motors are widely utilized in personal care products, such as electric shavers and hair dryers, where consistent performance and control are crucial for user satisfaction. In home applications, they power devices like automated window blinds and smart kitchen appliances, providing convenience and enhancing everyday living.
In the medical field, DC gear motors are integral to medical apparatus, including adjustable hospital beds and diagnostic equipment, where high precision and reliability are paramount. They also play a vital role in electronic locks, ensuring secure and efficient operation in both residential and commercial settings.
In business equipment, these motors are used in printers and copiers, delivering the necessary torque for smooth operation. Power tools, such as drills and saws, benefit from the high torque output of DC gear motors, enabling users to tackle tough jobs with ease. Furthermore, in automotive automatic facilities, these motors assist in various functions, enhancing user experience and vehicle performance.
Lastly, DC gear motors are widely used in the toy industry, powering remote-controlled vehicles and robotic toys, which engage and entertain users of all ages. With their ability to provide high torque at low speeds and maintain high precision, DC gear motors are indispensable across multiple sectors, driving innovation and efficiency..
| Rated Voltage | Number of stages | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||||||
| Reduction ratio | 4.4 | 10 | 16 | 21 | 27 | 40 | 47 | 59 | 78 | 103 | 130 | 172 | 226.8 | 286 | 378 | ||
| 6V | No-load speed | rpm | 1364 | 600 | 375 | 285.5 | 40 | 169 | 127.5 | 101.5 | 76.5 | 58 | 46 | 34.5 | 26.5 | 21 | 12 |
| Rated speed | rpm | 1182 | 520 | 325 | 247.5 | 47 | 46.5 | 110.5 | 88 | 66.5 | 50.5 | 40 | 30 | 22.5 | 18 | 10 | |
| Rated torque | N.m | 0.008 | 0.017 | 0.024 | 0.032 | 59 | 146.5 | 0.064 | 0.072 | 0.095 | 0.126 | 0.143 | 0.189 | 0.25 | 0.283 | 0.495 | |
| Output | W | 1.02 | 0.91 | 0.82 | 0.82 | 0.74 | 0.74 | 0.74 | 0.66 | 0.66 | 0.66 | 0.6 | 0.59 | 0.59 | 0.53 | 0.52 | |
| Max breaking torque | N.m | 0.065 | 0.133 | 0.191 | 0.251 | 0.28 | 0.382 | 0.504 | 0.57 | 0.754 | 0.995 | 1.133 | 1.499 | 1.976 | / | / | |
| 12V | No-load speed | rpm | 1273 | 560 | 350 | 266.5 | 215 | 157.5 | 119 | 94.5 | 71.5 | 54 | 43 | 32.5 | 24.5 | 19.5 | 11 |
| Rated speed | rpm | 1091 | 480 | 300 | 228.5 | 184.5 | 135 | 102 | 81 | 61.5 | 46.5 | 36.5 | 27.5 | 21 | 16.5 | 9.5 | |
| Rated torque | N.m | 0.007 | 0.015 | 0.022 | 0.028 | 0.032 | 0.043 | 0.057 | 0.064 | 0.085 | 0.112 | 0.128 | 0.169 | 0.223 | 0.253 | 0.442 | |
| Output | W | 0.74 | 0.75 | 0.68 | 0.68 | 0.61 | 0.61 | 0.61 | 0.55 | 0.55 | 0.55 | 0.49 | 0.49 | 0.49 | 0.44 | 0.44 | |
| Max breaking torque | N.m | 0.061 | 0.125 | 0.18 | 0.236 | 0.263 | 0.359 | 0.475 | 0.536 | 0.709 | 0.936 | 1.066 | 1.41 | 1.859 | 2.109 | / | |
| Gear box length | mm | 10 | 10 | 10 | 10 | 12 | |||||||||||
Model | Rated voltage | At no-load | At maximum efficiency | At stall | ||||
Speed | Current | Speed | Current | Power | torque | Stall torque | ||
V DC | rpm | A | rpm | A | W | g.cm | g.cm | |
FM-500-22170 | 6 | 6000 | 0.05 | 5200 | 0.3 | 1.18 | 23.5 | 185 |
FM-500-15370 | 12 | 5600 | 0.03 | 4800 | 0.15 | 1.03 | 21 | 175 |
|
|
