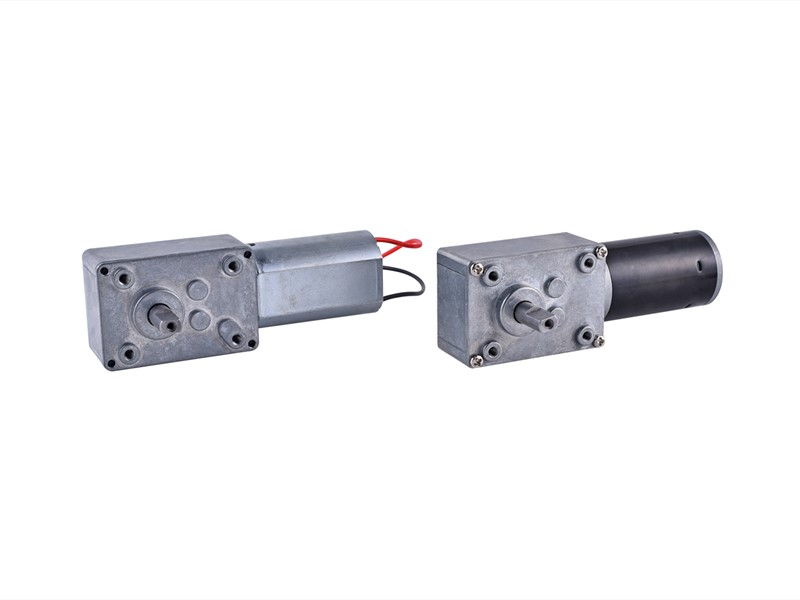

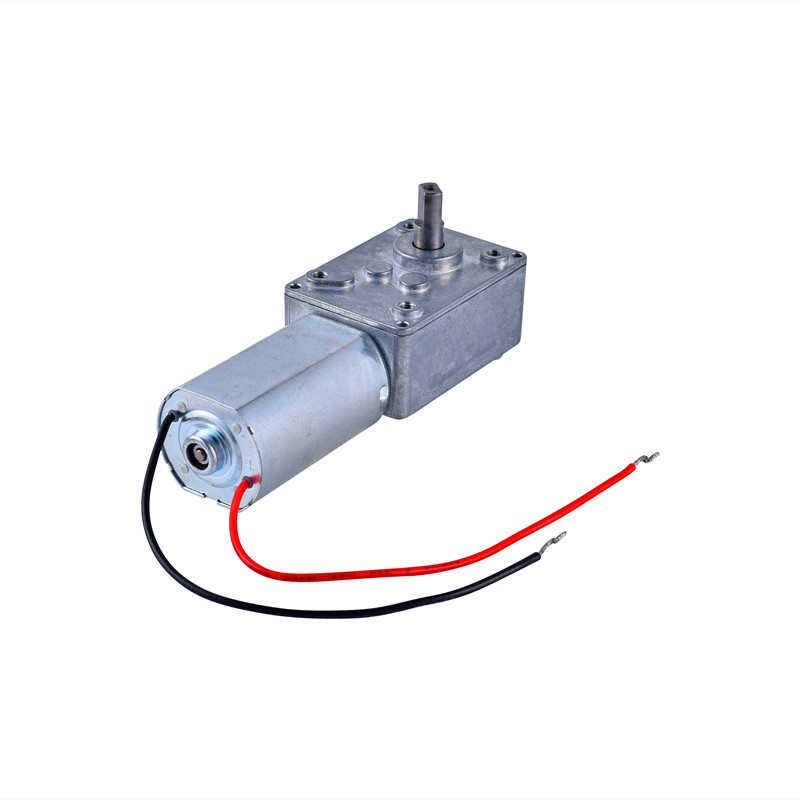

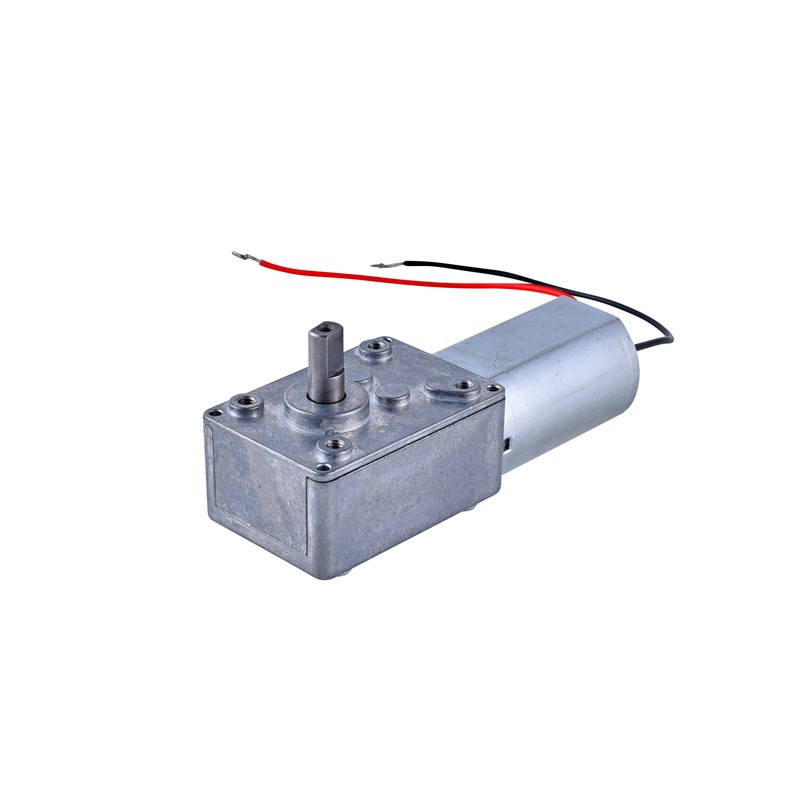

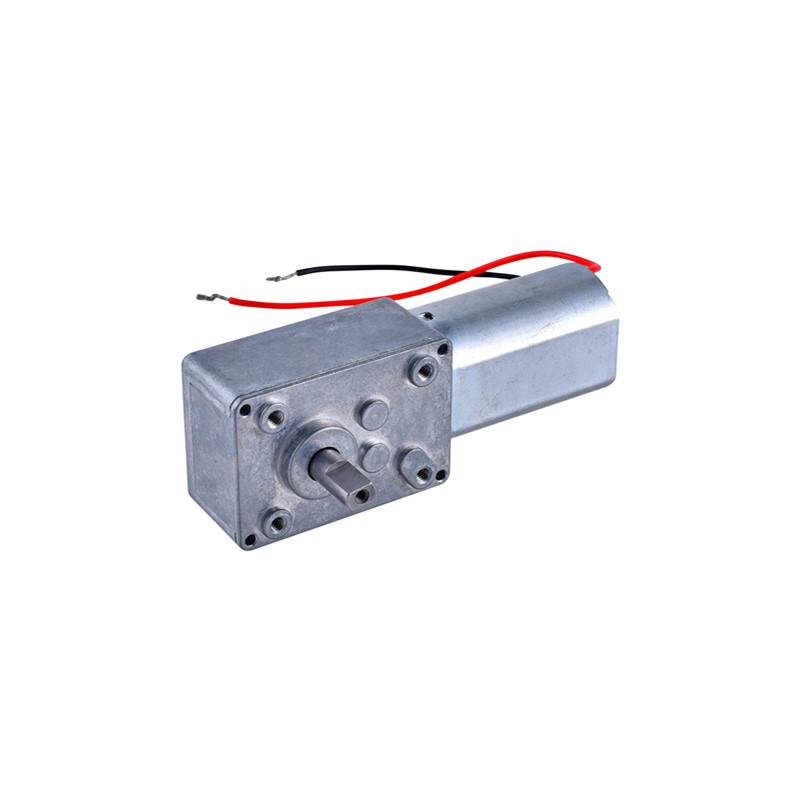

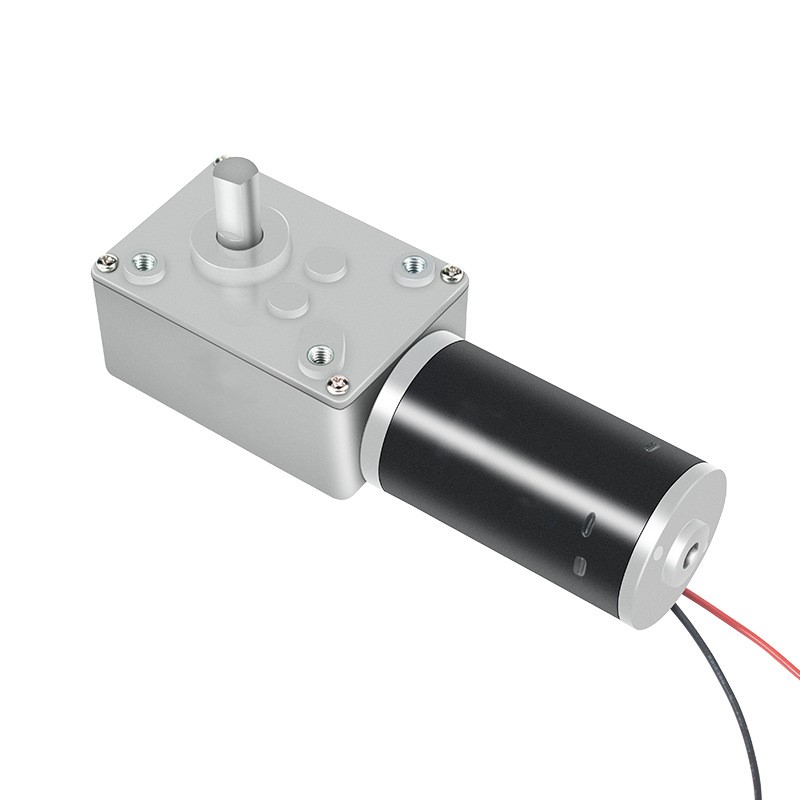

5840 turbine worm DC reduction motor with self-locking for household appliances and door locks
Model: FM-5840GF-550/555
Type: DC Gear Motor
Performance parameter: 6V to 24V 2.7RPM to 100RPM
Overview
Product Introduction
Mini hollow cup motor is a type of small electric motor that features a hollow cup design. It is known for its compact size, high efficiency, and low noise operation. This type of motor is commonly used in various applications such as robotics, drones, camera gimbals, and medical devices.
The mini hollow cup motor is ideal for situations where space is limited and weight is a concern. Its small size allows for easy integration into small devices, while its high efficiency ensures optimal performance. Additionally, the low noise operation makes it suitable for applications where noise levels need to be kept to a minimum.
Specification
DC gear motors are essential components in a variety of applications, known for their high torque, low speed, and precision. These motors are widely utilized in personal care products, such as electric shavers and hair dryers, where consistent performance and control are crucial for user satisfaction. In home applications, they power devices like automated window blinds and smart kitchen appliances, providing convenience and enhancing everyday living.
In the medical field, DC gear motors are integral to medical apparatus, including adjustable hospital beds and diagnostic equipment, where high precision and reliability are paramount. They also play a vital role in electronic locks, ensuring secure and efficient operation in both residential and commercial settings.
In business equipment, these motors are used in printers and copiers, delivering the necessary torque for smooth operation. Power tools, such as drills and saws, benefit from the high torque output of DC gear motors, enabling users to tackle tough jobs with ease. Furthermore, in automotive automatic facilities, these motors assist in various functions, enhancing user experience and vehicle performance.
Lastly, DC gear motors are widely used in the toy industry, powering remote-controlled vehicles and robotic toys, which engage and entertain users of all ages. With their ability to provide high torque at low speeds and maintain high precision, DC gear motors are indispensable across multiple sectors, driving innovation and efficiency..
Rated Voltage | Number of stages | 3 | 4 | |||||||||||
| Reduction ratio | 47.4 | 54 | 109 | 120.5 | 139 | 212 | 305 | 326.5 | 777 | 894 | 1067 | 1211 | ||
| 6V | No-load speed | rpm | 69.5 | 61 | 30.3 | 27.4 | 23.7 | 15.6 | 10.8 | 10 | 4.2 | 3.7 | 3 | 2.7 |
| Rated speed | rpm | 57 | 50 | 24.8 | 22.4 | 19.4 | 12.7 | 8.9 | 8.3 | 3.5 | 3 | 2.5 | 2.2 | |
| Rated torque | N.m | 0.233 | 0.265 | 0.535 | 0.592 | 0.682 | 1.041 | 0.998 | 1.069 | 2.543 | 2.926 | 3.493 | 3.964 | |
| Output | W | 1.39 | 1.39 | 1.39 | 1.39 | 1.39 | 1.38 | 0.93 | 0.93 | 0.93 | 0.92 | 0.91 | 0.91 | |
| Max breaking torque | N.m | 1.394 | 1.588 | 3.205 | 3.543 | 4.087 | / | / | / | / | / | / | / | |
| 12V | No-load speed | rpm | 97 | 85 | 42.2 | 38.2 | 33 | 21.7 | 15 | 14 | 5.9 | 5 | 4.3 | 3.8 |
| Rated speed | rpm | 82.3 | 72 | 35.8 | 32.4 | 28 | 18.4 | 12.8 | 11.9 | 5 | 4.4 | 3.7 | 3.2 | |
| Rated torque | N.m | 0.293 | 0.333 | 0.673 | 0.744 | 0.858 | 1.309 | 1.255 | 1.344 | 3.198 | 3.68 | 4.392 | 4.984 | |
| Output | W | 2.52 | 2.51 | 2.52 | 2.52 | 2.51 | 2.52 | 1.68 | 1.67 | 1.67 | 1.69 | 1.7 | 1.67 | |
| Max breaking torque | N.m | 1.812 | 2.064 | 4.166 | / | / | / | / | / | / | / | / | / | |

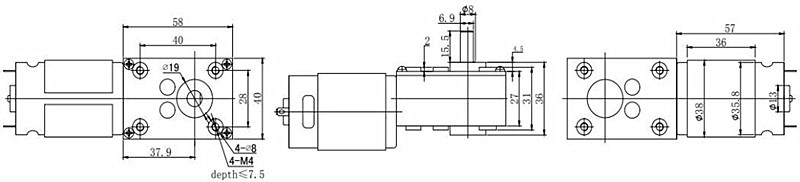

| Gear box length | mm | 31 | ||||||||||||
Model | Rated voltage | At no-load | At maximum efficiency | At stall | ||||
Speed | Current | Speed | Current | Power | torque | Stall torque | ||
V DC | rpm | A | rpm | A | W | g.cm | g.cm | |
FM-550-3780 | 6 | 3300 | 0.25 | 2700 | 1.3 | 4.62 | 167 | 1000 |
FM-555-3156 | 12 | 4600 | 0.23 | 3900 | 1.3 | 8.4 | 210 | 1300 |
|
|
Application
1.Electric toys: mini dc motor can be used to drive small electric toys, such as remote control cars, remote control planes and so on.
2. Household appliances: mini dc motor can be used in household appliances, such as electric toothbrush, electric shaver, etc.
3. Mechanical equipment: mini dc motor can be used to drive some small mechanical equipment, such as small power tools, small robots and so on.
4. Car models: mini dc motor can be used to drive small parts in car models, such as wheels, lights and so on.
5. Medical equipment: mini dc motor can be used for some small medical equipment, such as electric massager, electric suction, etc..
6. Smart home: mini dc motor can be used in smart home products, such as smart curtains, smart door locks and so on.
7. Electronic equipment: mini dc motor can be used to drive some small electronic equipment, such as small fan, small like head and so on.
8. Industrial equipment: mini dc motor can be used in some small industrial equipment, such as small conveyor belt, small mixer.
Details
Customization
We understand the technical and manufacturing challenges motors present and enjoy providing solutions. Through our design we reduce costs and engineering risk, leading to innovative solutions delivered on time and to spec.
Quality Control
Before leaving the factory, the motor needs to go through a series of tests, including: appearance test, size test, performance test, mechanical test, salt spray test, temperature storage test, drop test, noise test.
Qualification
Yichang Boyuan Electronics Co., Ltd. has been specialising in the production and research and development of DC micromotors since 2004. The company owns more than ten invention patents, a core team of 20 people, more than 200 employees, a standardised dust-proof workshop of 4,000 square feet, an independent motor laboratory and automated production equipment, the degree of automation in the production of micro-motor components reaches more than 56%, and the annual output of all kinds of motors is 30 million units.
Every year, the company develops more than 500 kinds of new motor samples, among which the waterproof electric toothbrush motor, radial motion acoustic motor and massage shoe motor have entered the mass production stage. At the same time, the company's automotive door locks, wiper pumps, seat automatic adjustment iron core motors through the manufacturer's audit to become a first-class automotive suppliers.
The company follows the principle of scientific and technological innovation, fine management, strict control of product quality. In 2022, the company successfully passed the IATF16949 automotive quality system certification.
