610 beauty device specialized micro vibration motor
Model: FM610-V
Type: Hollow Cup Motor

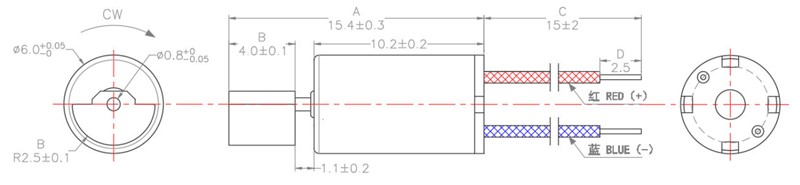

Size: φ6.0mm * L10.0mm
Performance parameter: 1.5V to 5V 12000RPM to 20000RPM
Overview
Product Introduction
Mini hollow cup motor is a type of small electric motor that features a hollow cup design. It is known for its compact size, high efficiency, and low noise operation. This type of motor is commonly used in various applications such as robotics, drones, camera gimbals, and medical devices.
The mini hollow cup motor is ideal for situations where space is limited and weight is a concern. Its small size allows for easy integration into small devices, while its high efficiency ensures optimal performance. Additionally, the low noise operation makes it suitable for applications where noise levels need to be kept to a minimum.
Specification
The 0610 hollow cup micro vibration DC motor. Operating within a voltage of 1.5 to 5V, this motor can achieve speeds of up to 12,000 RPM, making it ideal for generating vibrations and alerts in alarm systems.
This hollow cup ensures a lightweight and space-saving footprint, while still delivering powerful performance. Whether you are designing a new burglar alarm system or upgrading an existing one, the 0610 micro vibration motor is a reliable choice that combines high efficiency with ease of use.
| Model | Voltage | Rated speed | Rated current | Output power | Counterweight | Noise（at 10 cm） |
| V DC | rpm | mA | W | mm | dB | |
| FM0610-022 | 1.5 | 13000 | 30 | 0.09 | R2.5*L4.0 | ＜60 |
| FM0610-019 | 3 | 14000 | 25 | 0.15 | R3.0*L1.4 | ＜60 |
| FM0610-032 | 5 | 13400 | 40 | 0.4 | R2.75*L5.0 | ＜60 |
Operating temperature range:﹣20℃~+60℃（-4℉~140℉）
Axial play:0.05~0.30mm
Axial load:10N
Radial load:0.7N
No. of pole pairs:1
Bearings:2 sleeve bearings
Commutator:Precious metal 3 segments
Protection class:IP30
Application
1.Electric toys: mini dc motor can be used to drive small electric toys, such as remote control cars, remote control planes and so on.
2. Household appliances: mini dc motor can be used in household appliances, such as electric toothbrush, electric shaver, etc.
3. Mechanical equipment: mini dc motor can be used to drive some small mechanical equipment, such as small power tools, small robots and so on.
4. Car models: mini dc motor can be used to drive small parts in car models, such as wheels, lights and so on.
5. Medical equipment: mini dc motor can be used for some small medical equipment, such as electric massager, electric suction, etc..
6. Smart home: mini dc motor can be used in smart home products, such as smart curtains, smart door locks and so on.
7. Electronic equipment: mini dc motor can be used to drive some small electronic equipment, such as small fan, small like head and so on.
8. Industrial equipment: mini dc motor can be used in some small industrial equipment, such as small conveyor belt, small mixer.
