RS 385 DC High Quality and Large Torque DC Motor for Air pump/hair dryer/electric screwdriver
Model: FM385
Type: Core Motor

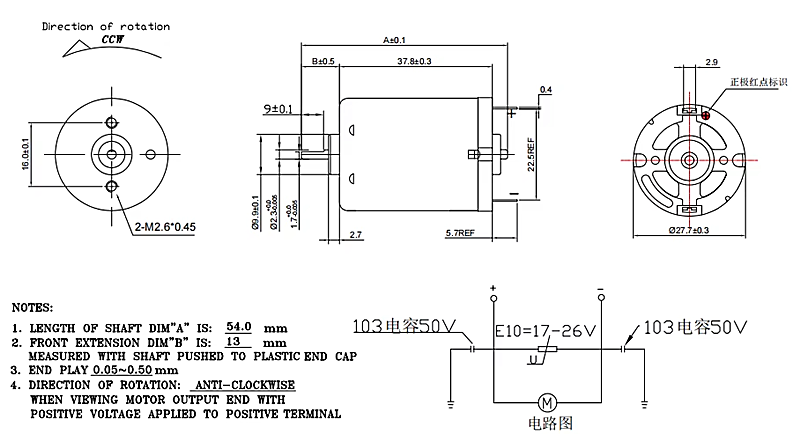

Size: φ27.7mm * L37.8mm
Performance parameter: 2.2V~24V 6000RPM~30000RPM
Overview
Product Introduction
Mini hollow cup motor is a type of small electric motor that features a hollow cup design. It is known for its compact size, high efficiency, and low noise operation. This type of motor is commonly used in various applications such as robotics, drones, camera gimbals, and medical devices.
The mini hollow cup motor is ideal for situations where space is limited and weight is a concern. Its small size allows for easy integration into small devices, while its high efficiency ensures optimal performance. Additionally, the low noise operation makes it suitable for applications where noise levels need to be kept to a minimum.
Specification
The RS 385 DC Motor is a high-quality, robust solution designed to deliver large torque and exceptional performance for various applications, including air pumps, hair dryers, and electric screwdrivers. This compact motor features advanced engineering to ensure efficient operation and reliability, making it ideal for both consumer and industrial use.
With its powerful torque output, the RS 385 is capable of handling demanding tasks with ease, providing consistent performance even under heavy loads. Its durable construction and high-quality materials ensure longevity and resilience, making it suitable for continuous operation in challenging environments.
Additionally, the RS 385 DC Motor is designed for easy integration into different products, offering versatility for manufacturers looking to enhance their devices. Its lightweight design and compact dimensions make it an excellent choice for applications where space is limited.
Whether you’re developing a high-performance air pump, a reliable hair dryer, or a versatile electric screwdriver, the RS 385 DC Motor stands out as a top choice for delivering the power and efficiency needed to meet your design requirements.
|
Model |
Rated voltage |
At no-load |
At maximum efficiency |
At stall |
|||||
|
Speed |
Current |
Speed |
Current |
Torque |
Power |
Eff. |
Stall torque |
||
|
V DC |
rpm |
A |
rpm |
A |
g.cm |
W |
% |
g.cm |
|
|
FM-385PM-18100 |
12.0 |
6380 |
0.16 |
5160 |
0.51 |
67 |
3.5 |
57.2 |
350 |
|
FM-385PM-3525 |
9.6 |
21700 |
0.69 |
18550 |
3.12 |
101 |
19.2 |
64.1 |
700 |
|
FM-385SP-2073 |
24.0 |
12300 |
0.3 |
17023 |
1.45 |
113 |
19.7 |
56.5 |
700 |
|
FM-385SP-2552 |
18.0 |
20960 |
0.4 |
17685 |
2.12 |
125 |
125 |
59.4 |
800 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Application
1.Electric toys: mini dc motor can be used to drive small electric toys, such as remote control cars, remote control planes and so on.
2. Household appliances: mini dc motor can be used in household appliances, such as electric toothbrush, electric shaver, etc.
3. Mechanical equipment: mini dc motor can be used to drive some small mechanical equipment, such as small power tools, small robots and so on.
4. Car models: mini dc motor can be used to drive small parts in car models, such as wheels, lights and so on.
5. Medical equipment: mini dc motor can be used for some small medical equipment, such as electric massager, electric suction, etc..
6. Smart home: mini dc motor can be used in smart home products, such as smart curtains, smart door locks and so on.
7. Electronic equipment: mini dc motor can be used to drive some small electronic equipment, such as small fan, small like head and so on.
8. Industrial equipment: mini dc motor can be used in some small industrial equipment, such as small conveyor belt, small mixer.
