0612 6mm DIY solar toy car hollow cup DC motor
Model: FM612
Type: Hollow Cup Motor

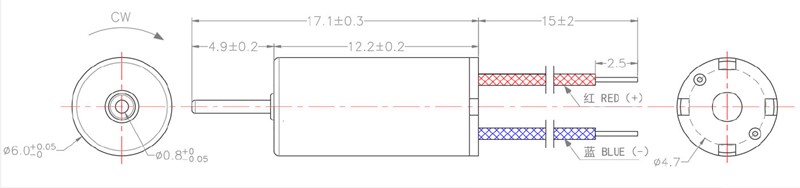

Size: φ6.0mm * L12.0mm
Performance parameter: 1.5V to 4.5V 12000RPM to 54000RPM
Overview
Product Introduction
Mini hollow cup motor is a type of small electric motor that features a hollow cup design. It is known for its compact size, high efficiency, and low noise operation. This type of motor is commonly used in various applications such as robotics, drones, camera gimbals, and medical devices.
The mini hollow cup motor is ideal for situations where space is limited and weight is a concern. Its small size allows for easy integration into small devices, while its high efficiency ensures optimal performance. Additionally, the low noise operation makes it suitable for applications where noise levels need to be kept to a minimum.
Specification
This 612 hollow cup DC motor is a powerful motor that can be used in a variety of projects. With a voltage range of 1.5V to 12V and a speed range of 15000RPM to 54000RPM, this motor is capable of providing high torque and fast speeds. The hollow cup design allows for efficient heat dissipation, making it ideal for prolonged use. Whether you are building a solar toy car, a small robot, or any other DIY project that requires a reliable motor, this DC motor is sure to meet your needs. Add this motor to your collection and start bringing your ideas to life!
|
Model |
Rated voltage |
At no-load |
At maximum efficiency |
At stall |
|||||
|
Speed |
Current |
Speed |
Current |
Torque |
Power |
Eff. |
Stall torque |
||
|
V DC |
rpm |
mA |
rpm |
mA |
g.cm |
W |
% |
g.cm |
|
|
FM0612-036 |
1.2 |
12300 |
15 |
9900 |
61 |
0.3 |
0.03 |
46.9 |
1.7 |
|
FM0612-094 |
3.0 |
20000 |
20 |
14900 |
58 |
0.4 |
0.07 |
39.5 |
1.7 |
|
FM0612-099 |
3.7 |
28000 |
14 |
22900 |
63 |
0.6 |
0.13 |
57.5 |
3.1 |
|
FM0612-071 |
5 |
54000 |
55 |
42300 |
198 |
1.0 |
0.45 |
50.0 |
4.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Operating temperature range:﹣20℃~+60℃（-4℉~140℉）
Axial play:0.05~0.30mm
Axial load:10N
Radial load:0.7N
No. of pole pairs:1
Bearings:2 sleeve bearings
Commutator:Precious metal 3 segments
Protection class:IP30
Application
1.Electric toys: mini dc motor can be used to drive small electric toys, such as remote control cars, remote control planes and so on.
2. Household appliances: mini dc motor can be used in household appliances, such as electric toothbrush, electric shaver, etc.
3. Mechanical equipment: mini dc motor can be used to drive some small mechanical equipment, such as small power tools, small robots and so on.
4. Car models: mini dc motor can be used to drive small parts in car models, such as wheels, lights and so on.
5. Medical equipment: mini dc motor can be used for some small medical equipment, such as electric massager, electric suction, etc..
6. Smart home: mini dc motor can be used in smart home products, such as smart curtains, smart door locks and so on.
7. Electronic equipment: mini dc motor can be used to drive some small electronic equipment, such as small fan, small like head and so on.
8. Industrial equipment: mini dc motor can be used in some small industrial equipment, such as small conveyor belt, small mixer.
