1013 micro DC coreless motor for toy trains, silent cameras, and model airplanes

2024-07-23 15:34:42

 Model: FM1013

Type: Hollow Cup Motor

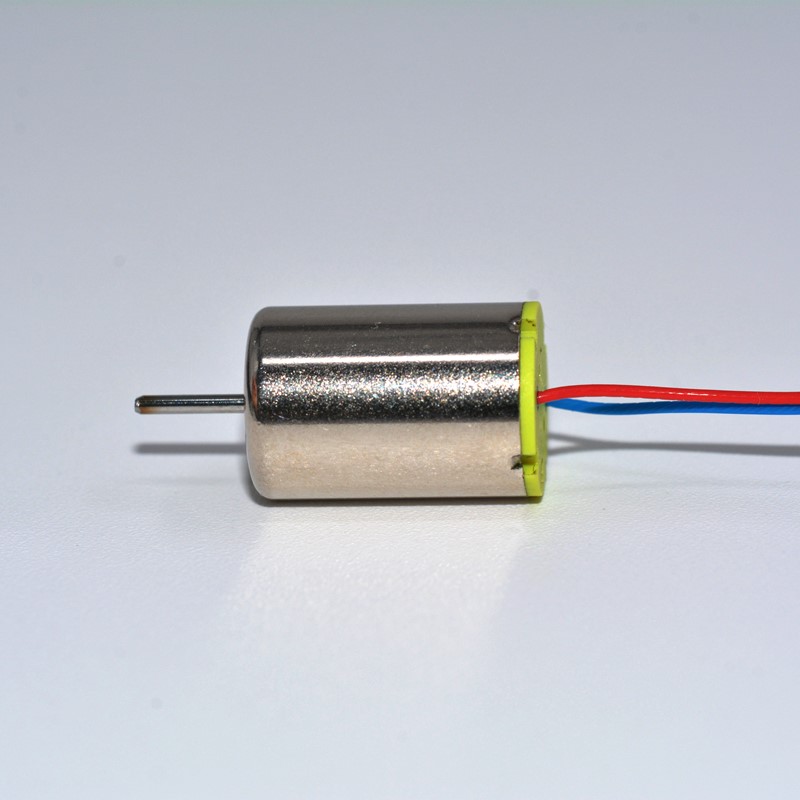

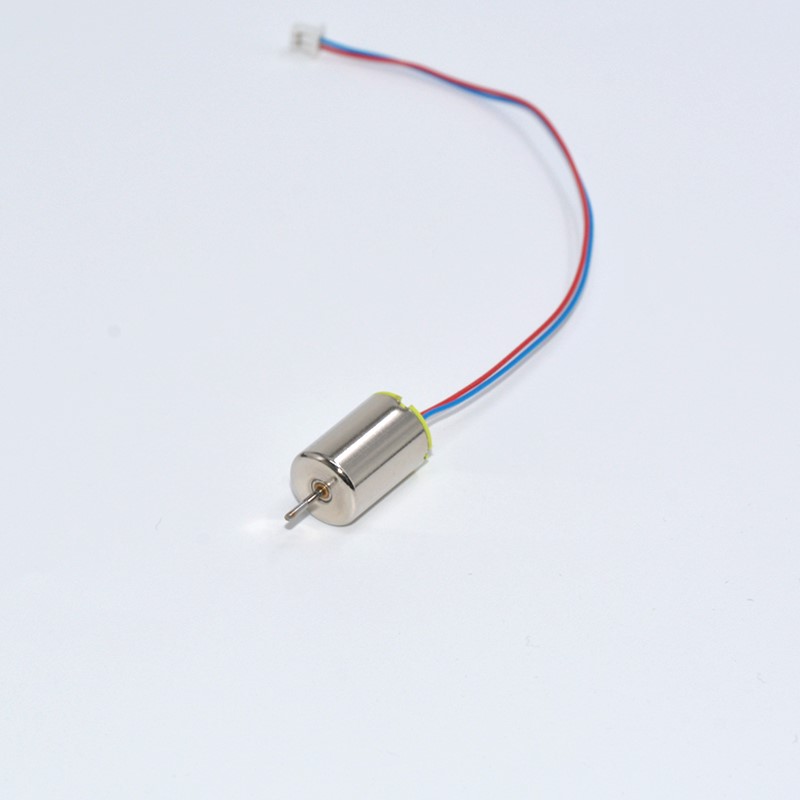

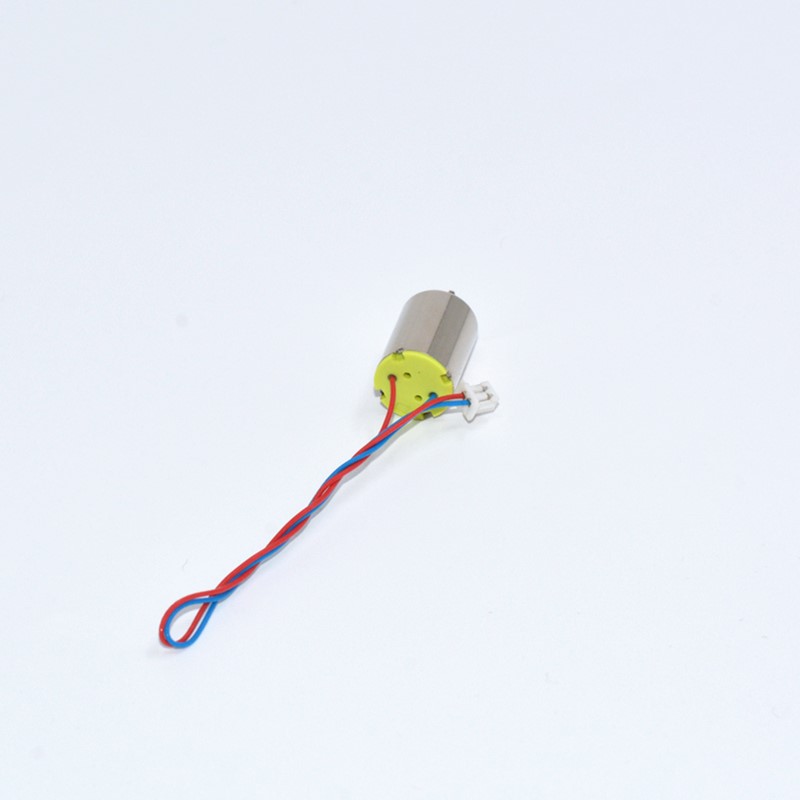

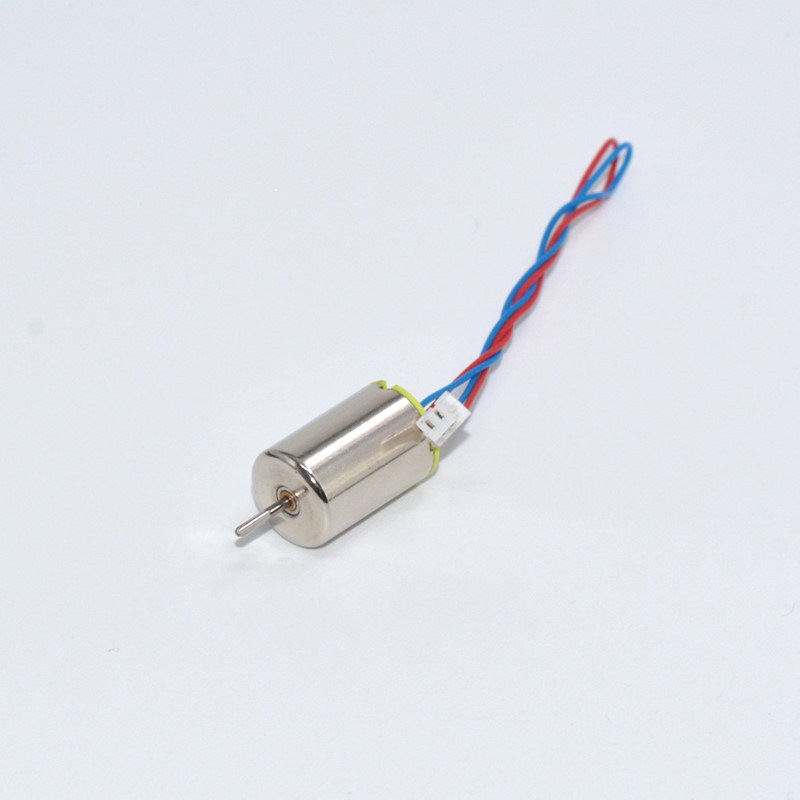

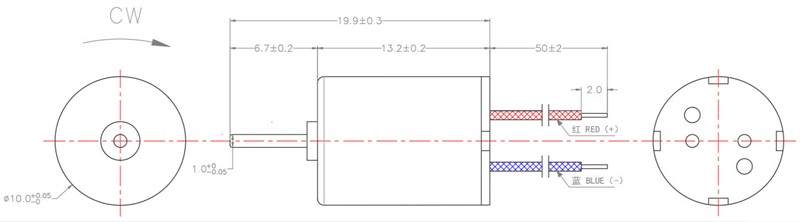

Size: φ10.0mm * L13.0mm

Performance parameter:  1.5V to 12V   12000RPM to 54000RPM

Overview

Product Introduction




Mini hollow cup motor is a type of small electric motor that features a hollow cup design. It is known for its compact size, high efficiency, and low noise operation. This type of motor is commonly used in various applications such as robotics, drones, camera gimbals, and medical devices.

The mini hollow cup motor is ideal for situations where space is limited and weight is a concern. Its small size allows for easy integration into small devices, while its high efficiency ensures optimal performance. Additionally, the low noise operation makes it suitable for applications where noise levels need to be kept to a minimum.

Specification



    The 1013 micro DC coreless motor is an exceptional choice for various applications, particularly in toy trains, silent cameras, and model airplanes. This compact motor is designed to deliver high efficiency and reliability in a lightweight package, making it ideal for projects where space and weight are critical.

    Featuring a coreless design, the 1013 motor eliminates the iron core found traditional DC motors, which results in reduced inertia and faster response times. This characteristic allows for smoother and more precise control over speed and movement, for the delicate operation of model trains and the quiet performance required in silent cameras.

    For model airplane enthusiasts, the lightweight and efficient nature of the 1013 motor enhances flight performance while maintaining a low overall weight, crucial for achieving optimalodynamics. Its durability and ability to handle varying load conditions make it a reliable for both beginners and experienced hobbyists alike.


Model

Rated

voltage

At no-load

At maximum efficiency

At stall

Speed

Current

Speed

Current

Torque

Power

Eff.

Stall torque

V DC

rpm

mA

rpm

mA

g.cm

W

%

g.cm

FM0612-036

1.2

12300

15

9900

61

0.3

0.03

46.9

1.7

FM0612-094

3.0

20000

20

14900

58

0.4

0.07

39.5

1.7

FM0612-099

3.7

28000

14

22900

63

0.6

0.13

57.5

3.1

FM0612-071

5

54000

55

42300

198

1.0

0.45

50.0

4.7























Operating temperature range:﹣20℃~+60℃(-4℉~140℉)

Axial play:0.05~0.30mm

Axial load:10N

Radial load:0.7N

No. of pole pairs:1

Bearings:2 sleeve bearings

Commutator:Precious metal 3 segments

Protection class:IP30


Application




1.Electric toys: mini dc motor can be used to drive small electric toys, such as remote control cars, remote control planes and so on.

2. Household appliances: mini dc motor can be used in household appliances, such as electric toothbrush, electric shaver, etc.

3. Mechanical equipment: mini dc motor can be used to drive some small mechanical equipment, such as small power tools, small robots and so on.

4. Car models: mini dc motor can be used to drive small parts in car models, such as wheels, lights and so on.

5. Medical equipment: mini dc motor can be used for some small medical equipment, such as electric massager, electric suction, etc..

6. Smart home: mini dc motor can be used in smart home products, such as smart curtains, smart door locks and so on.

7. Electronic equipment: mini dc motor can be used to drive some small electronic equipment, such as small fan, small like head and so on.

8. Industrial equipment: mini dc motor can be used in some small industrial equipment, such as small conveyor belt, small mixer.
